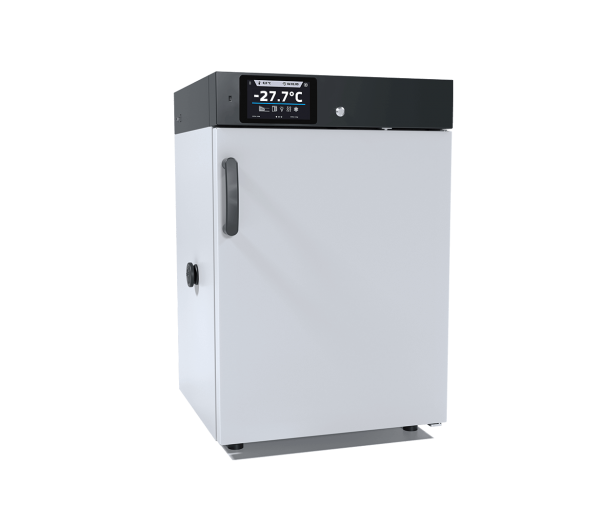

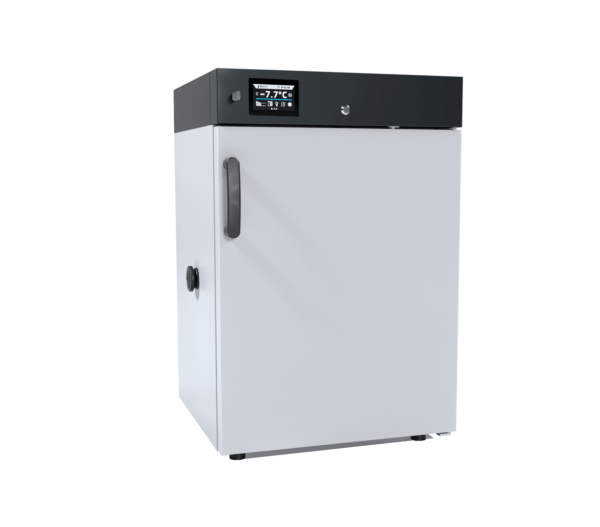

ZLN 85 SMART – Laboratoriefryser -25°/0°, 85 liter

Technical data Smart

TECHNICAL DATA
air convection	natural
chamber capacity [l]	85
working capacity [l]	73
controller	microprocessor PID
display	4,3″ full colour touch screen
insulation type	polyurethane foam
TEMPERATURE
temperature range [°C]	-25…0
temperature resolution every … [°C]	0,1
temperature fluctuation at -20°C [+/-°C]*	0,5
temperature variation at -20°C [+/-°C]*	2,0
temperature protection	class 3.2 to DIN 12880 (option)
CHAMBER
door type	solid
interior
C Smart	stainless steel to DIN 1.4016
CS Smart	stainless steel to DIN 1.4016
P Smart	acid-proof stainless steel to DIN 1.4301
PS Smart	acid-proof stainless steel to DIN 1.4301
housing
C Smart	powder coated sheet
CS Smart	stainless steel polished
P Smart	powder coated sheet
PS Smart	stainless steel polished
overall dims [mm] /1/
width A	620
height B	930
depth C	650
internal dims [mm]
width D	380
width D’	420
height E	590
depth F	400
depth F’	440
depth G	230
height H	380
shelves (standard | max)	2 | 4
max shelf workload [kg] /2/	10
max unit workload [kg]	30
weight [kg]	62
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	200
refrigerant	R290 / GWP=3
warranty	24 months
manufacturer	POL-EKO

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable
2 – on uniformly loaded surface
3 – reinforced shelf
4 – reinforced version

Technical data Smart PRO

TECHNICAL DATA
air convection	natural
chamber capacity [l]	85
working capacity [l]	73
controller	microprocessor PID
display	7″ full colour touch screen
insulation type	polyurethane foam
TEMPERATURE
temperature range [°C]	-25…0
temperature resolution every … [°C]	0,1
temperature fluctuation at -20°C [+/-°C]*	0,5
temperature variation at -20°C [+/-°C]*	2,0
temperature protection	class 3.2 to DIN 12880 (option)
CHAMBER
door type	solid
interior
P Smart PRO	acid-proof stainless steel to DIN 1.4301
PS Smart PRO	acid-proof stainless steel to DIN 1.4301
housing
P Smart PRO	powder coated sheet
PS Smart PRO	stainless steel polished
overall dims [mm] /1/
width A	620
height B	930
depth C	650
internal dims [mm]
width D	380
width D’	420
height E	590
depth F	400
depth F’	440
depth G	230
height H	380
shelves (standard | max)	2 | 4
max shelf workload [kg] /2/	10
max unit workload [kg]	30
weight [kg]	62
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	200
refrigerant	R290 / GWP=3
warranty	24 months
manufacturer	POL-EKO

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable
2 – on uniformly loaded surface
3 – reinforced shelf
4 – reinforced version
