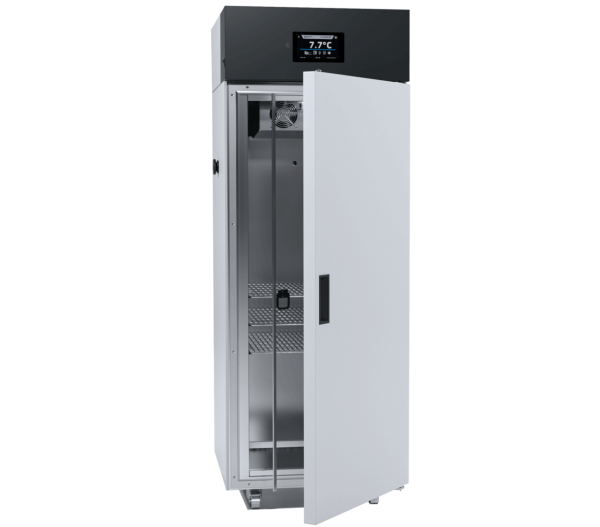

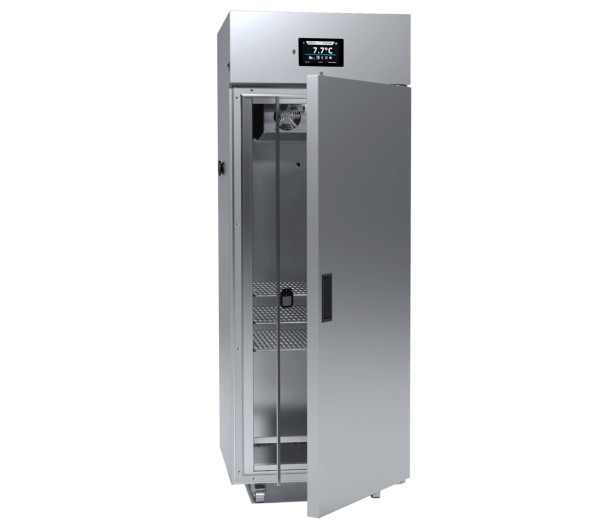

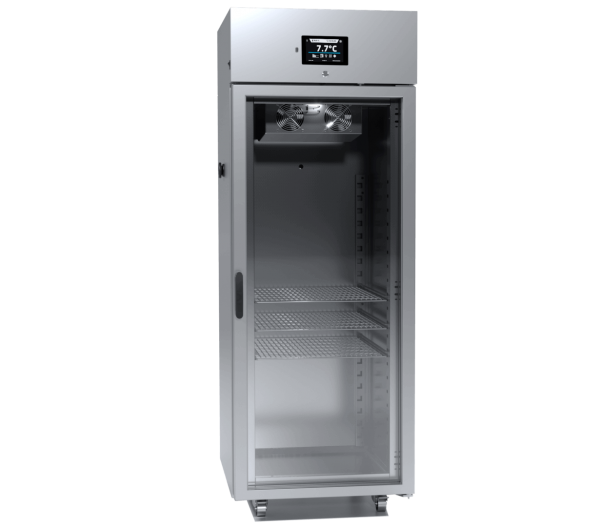

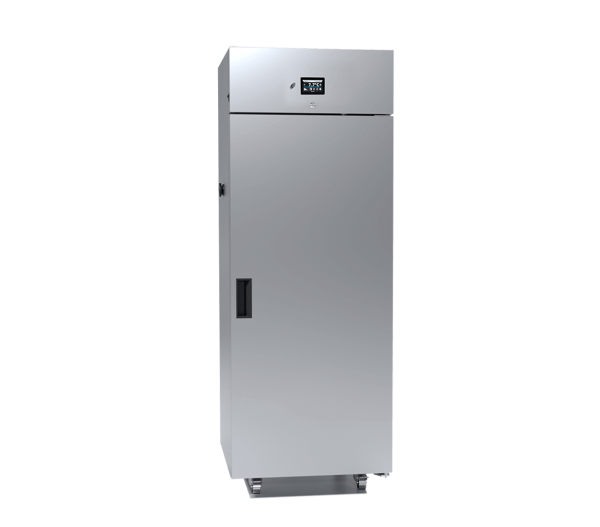

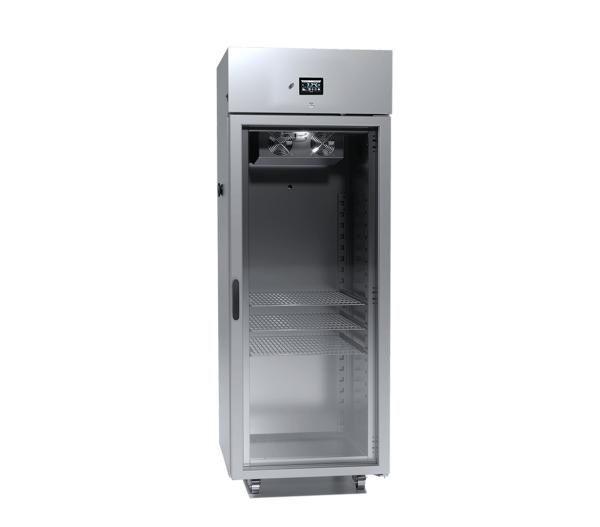

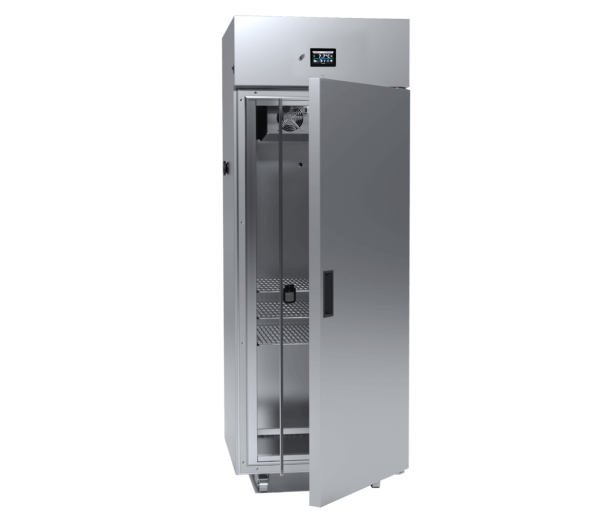

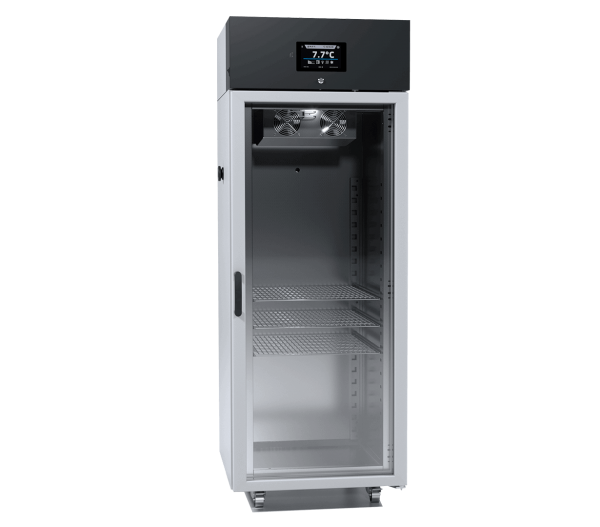

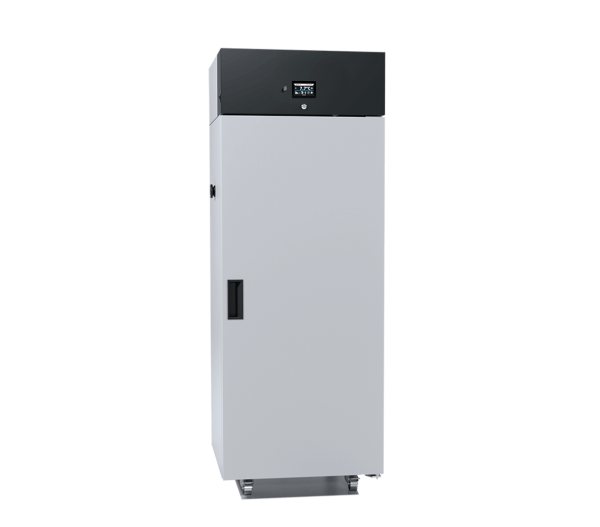

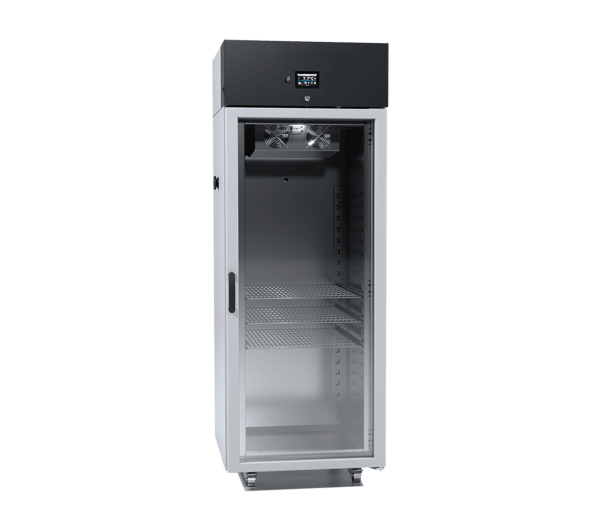

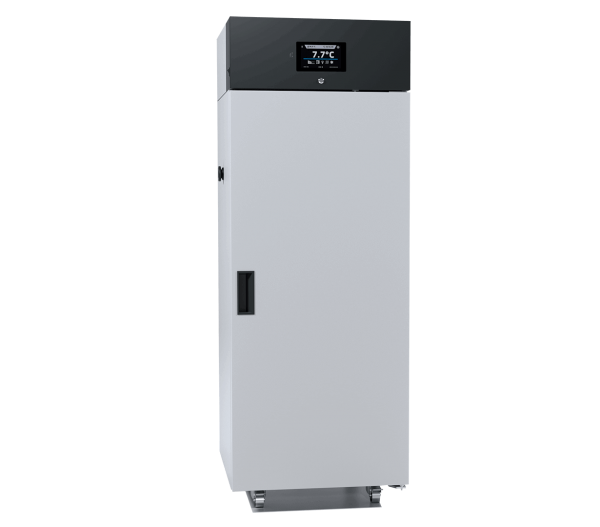

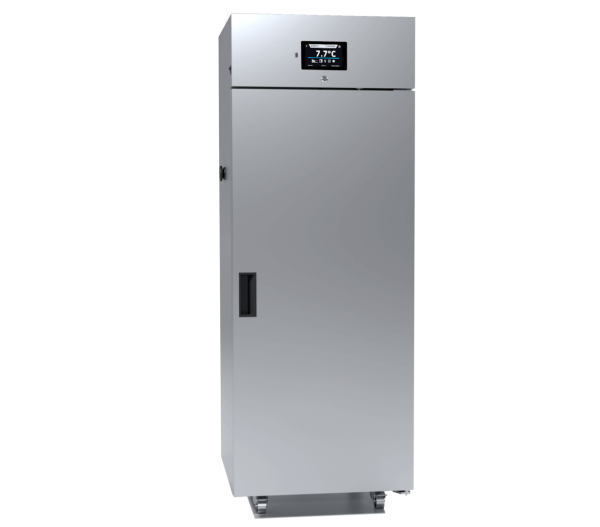

CHL700 Smart – Laboratoriekjøleskap, Medisinsk kjøleskap, 625 liter

Technical data Smart

TECHNICAL DATA
air convection	forced
chamber capacity [l]	625
working capacity [l]	611
controller	microprocessor PID
display	4,3″ full colour touch screen
TEMPERATURE
temperature range [°C]	0…+15
temperature resolution every … [°C]	0,1
temperature fluctuation at 4°C [+/-°C]*	0,8
temperature variation at 4°C [+/-°C]*	1,0
temperature protection	class 1.0 to DIN 12880 / class 3.2 (option)
CHAMBER
door type	solid / glass or double (option) /4/
interior
C Smart	stainless steel to DIN 1.4016
CS Smart	stainless steel to DIN 1.4016
P Smart	acid-proof stainless steel to DIN 1.4301
PS Smart	acid-proof stainless steel to DIN 1.4301
housing
C Smart	powder coated sheet
CS Smart	stainless steel polished
P Smart	powder coated sheet
PS Smart	stainless steel polished
overall dims [mm] /1/
width A	730
height B	1990
depth C	900
internal dims [mm]
width D	540
width D’	600
height E	1510
depth F	680
height I	1380
shelves (standard | max)	3 | 11
max shelf workload [kg] /2/	30
– reinforced shelf version (PW) [kg] /3/	100
max unit workload [kg]	150
weight [kg]	121
ELECTRICAL PARAMETERS
voltage	230V 50-60Hz
nominal power [W]	650
refrigerant	R290 / GWP=3
warranty	24 months
manufacturer	POL-EKO®

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable, the width does not include the 20 mm of rubber plug
2 – on uniformly loaded surface
3 – reinforced shelf
4 – additional internal glass door

Technical data Smart PRO

TECHNICAL DATA
air convection	forced
chamber capacity [l]	625
working capacity [l]	611
controller	microprocessor PID
display	7″ full colour touch screen
TEMPERATURE
temperature range [°C]	0…+15
temperature resolution every … [°C]	0,1
temperature fluctuation at 4°C [+/-°C]*	0,8
temperature variation at 4°C [+/-°C]*	1,0
temperature protection	class 3.2 to DIN 12880
CHAMBER
door type	solid / glass or double (option) /4/
interior
C Smart PRO	stainless steel to DIN 1.4016
CS Smart PRO	stainless steel to DIN 1.4016
P Smart PRO	acid-proof stainless steel to DIN 1.4301
PS Smart PRO	acid-proof stainless steel to DIN 1.4301
housing
C Smart PRO	powder coated sheet
CS Smart PRO	stainless steel polished
P Smart PRO	powder coated sheet
PS Smart PRO	stainless steel polished
overall dims [mm] /1/
width A	730
height B	1990
depth C	900
internal dims [mm]
width D	530
width D’	600
height E	1510
depth F	680
height I	1380
shelves (standard | max)	3 | 11
max shelf workload [kg] /2/	30
– reinforced shelf version (PW) [kg] /3/	100
max unit workload [kg]	150
weight [kg]	121
ELECTRICAL PARAMETERS
voltage	230V 50-60Hz
nominal power [W]	650
refrigerant	R290 / GWP=3
warranty	24 months
manufacturer	POL-EKO®

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable, the width does not include the 20 mm of rubber plug
2 – on uniformly loaded surface
3 – reinforced shelf
4 – additional internal glass door
